IP9165-HP

IP9165-HP
IP9165-HP


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


1920x1080'de 60 fps

H.265 Sıkıştırma Teknolojisi

3.6 ~ 17 mm, Uzak Arka Odak, P-iris Lens

Düşük Işık Koşulları için SNV II (Yüce Gece Görüşü II)

Son Derece Parlak veya Karanlık Ortamlarda Olağanüstü Görünürlük Sağlamak için WDR Pro II (140dB)

Kolay Odak Ayarlamaları için Uzaktan Arka Odak

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream III

Görüntü Sabitlemeyi Kontrol Etmek için DIS (Dijital Görüntü Sabitleme)

Koridor Görünümü için Video Döndürme

Kamera Kalitesi Optimizasyonu için Lens Profili

Trend Mikro IoT Güvenliği


Genel Bakış

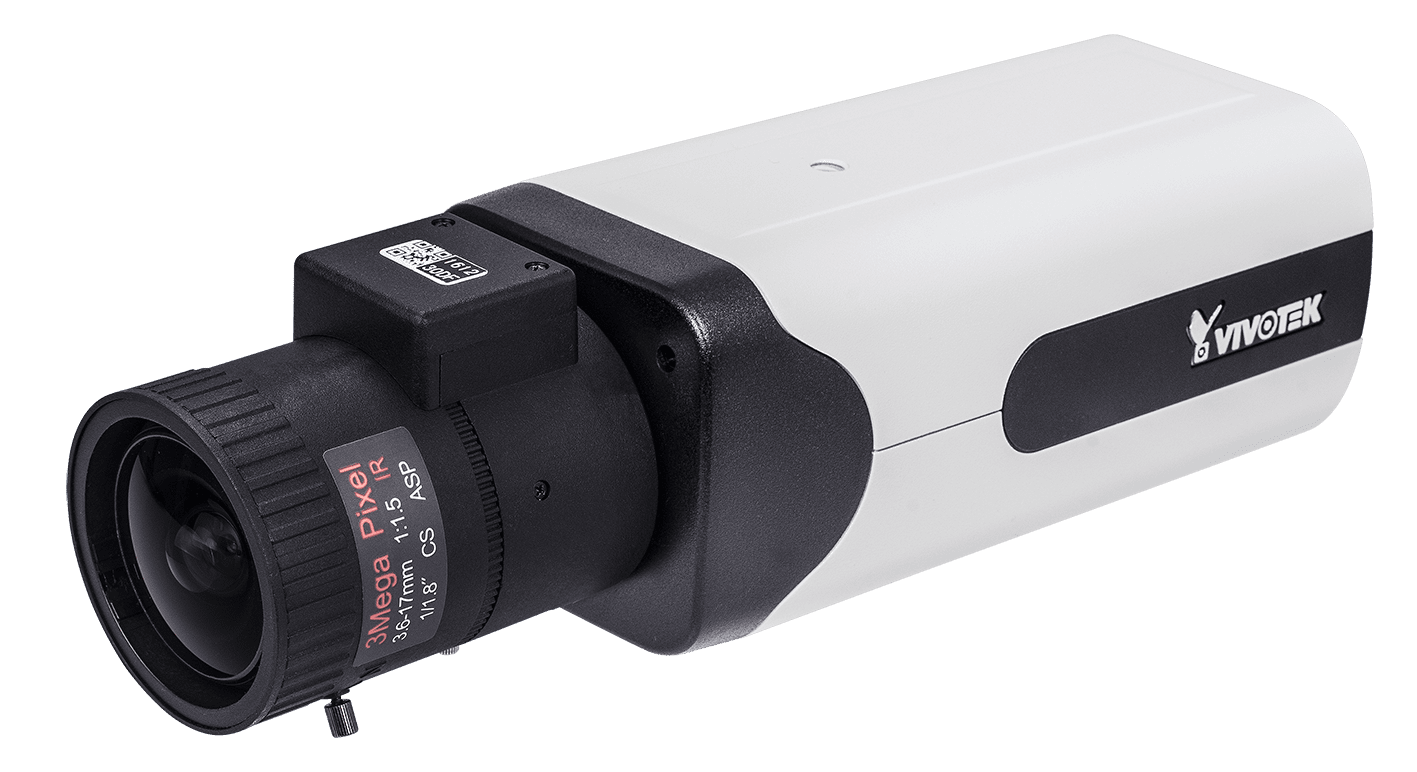

VIVOTEK'in IP9165-HP'si, olağanüstü görüntü ile 1080p'de 60 fps'ye kadar sunan profesyonel bir H.265 kutu ağ kamerasıdır. onu rakiplerinden ayıran kalite. En yeni VIVOTEK'in SNV II, WDR Pro II ve Smart Stream ile III teknolojileri, kamera hem düşük ışıkta hem de yüksek kontrastlı ortamlarda net görüntüler sağlar ve büyük ölçüde en yüksek video kalitesini korurken bant genişliğini ve depolamayı azaltır. Bu benzersiz kombinasyon, IP9165-HP, hükümet ve endüstriyel uygulamalar dahil olmak üzere çok çeşitli video gözetim uygulamaları için uygundur binalar, perakende satış yerleri, havaalanları, tren istasyonları, trafik kavşakları ve üniversite kampüsleri.


Kameranın zorlu ortamlara uyum sağlama yeteneğini geliştirmek için hassas yazılım kontrolleri, irisi korur IP9165-HP'nin lensinin her zaman optimum seviyede açılması, üstün keskinliğin yanı sıra alan derinliği. Son olarak, IP9165-HP ayrıca VIVOTEK'in RBF (Uzaktan Arkaya Odaklanma) sistemi ile donatılmıştır. odağı daha fazla esneklik ve hassasiyetle ayarlamak için yükleyici.





AE-23EAE-244AL-239AL-24AAL-24BAL-24D


Smart Stream III Technology

SNV II Technology: Show You True Colors at Night

Cybersecurity Management Solution

Teknik Özellikler

System Information
Model
IP9165-HP
CPU
Multimedia SoC (System-on-Chip)
Flash
128MB
RAM
1GB
Camera Features
Image Sensor
1/2" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Vari-focal, Remote Back Focus
Focal Length
f = 3.6 ~ 17 mm
Aperture
F1.5 ~ F2.8
Auto-iris
P-iris (DC-iris reserved)
Field of View
28° ~ 100° (Horizontal)
16° ~ 55° (Vertical)
32° ~ 119° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro II
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
0.01 lux @ F1.5 (Color)
0.005 lux @ F1.5 (B/W)
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Slot type: MicroSD/SDHC/SDXC card slot
(Max. SD card capacity:128GB)
Seamless Recording
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
60 fps @ 1920x1080
Maximum Streams
4 simultaneous streams
S/N Ratio
66.2 dB
Dynamic Range
140 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks, scheduled profile settings, HLC, defog, 3D noise reduction, DIS, video rotation, lens profile
Audio
Audio Capability
Two-way Audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
External microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
Alarm and Event
Event Trigger
Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Event Action
Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection
Audio input
Audio output
DC 12V/AC 24V power input
Digital input*2
Digital output*2
RS485
BNC
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
DC 12V
AC 24V
Power Consumption
DC 12V: Max. 9 W
AC 24V: Max. 18 W
PoE: Max. 9.06 W
Dimensions
151 x 70 x 61 mm (w/o lens)
227 x 70 x 61 mm (w/ lens)
Weight
680 g (w/o lens)
800 g (w/ lens)
Certifications
CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Packing Contents
Quick installation guide, warranty card, lens, camera stand, screw pack



Document Type Model Name Type Category Title Version Issued Date File Size

Datasheet

IP9165-HP





475.2 KB

QIG

IP9165-HP




4.2 MB

Manual

IP9165-HP




17.6 MB

Firmware

IP9165-HP

0124d
2020-10-14
46.6 MB

Firmware

IP9165-HP

2.2002.23.01e
2021-01-04
46.4 MB

Others

IP9165-HP


Declaration of Conformity


159.5 KB

Others


Accessories Ordering Guide



1.3 MB


IP9165-HP



215 KB

Vivotek Model Name Lens Brand Lens Model Focal Length F # Iris Type Mount Type IR Correction FOV Profile Version Lens Profile
IP9165-HP VIVOTEK AL-239 8-80 1.6 DC C Yes 5.6~57.6°(H) / 3.1~44.8°(V) N/A bundled in firmware
IP9165-HP VIVOTEK AL-24A 12-40 1.8 P CS Yes 11.6~34.2°(H) / 6.6~18.7°(V) / 13.3~39.8°(D) N/A bundled in firmware
IP9165-HP VIVOTEK AL-24B 3.6-17 1.5 P CS Yes 28~100°(H) / 16~55°(V) / 32~119°(D) N/A bundled in firmware
IP9165-HP VIVOTEK AL-24D 25-135 1.8 P C Yes 3.06~16.39°(H) / 1.72~9.26°(V) N/A bundled in firmware
