FD9371-EHTV

FD9371-EHTV
FD9371-EHTV


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


2048x1536'da 30 fps

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream III

Yüksek Karşıtlık Ortamlarında Eşsiz Görünürlük için WDR Pro

Dahili IR Aydınlatıcılar, 30 Metreye Kadar Etkili

Kolay Odak Ayarlamaları için Uzaktan Odaklama

Hava koşullarına dayanıklı IP66 dereceli ve Vandalizme dayanıklı IK10 dereceli Muhafaza

PoE ile Aşırı Hava Durumu Desteği

Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)

Koridor Görünümü için Video Döndürme

DIS (Dijital Görüntü Sabitleme)


Genel Bakış

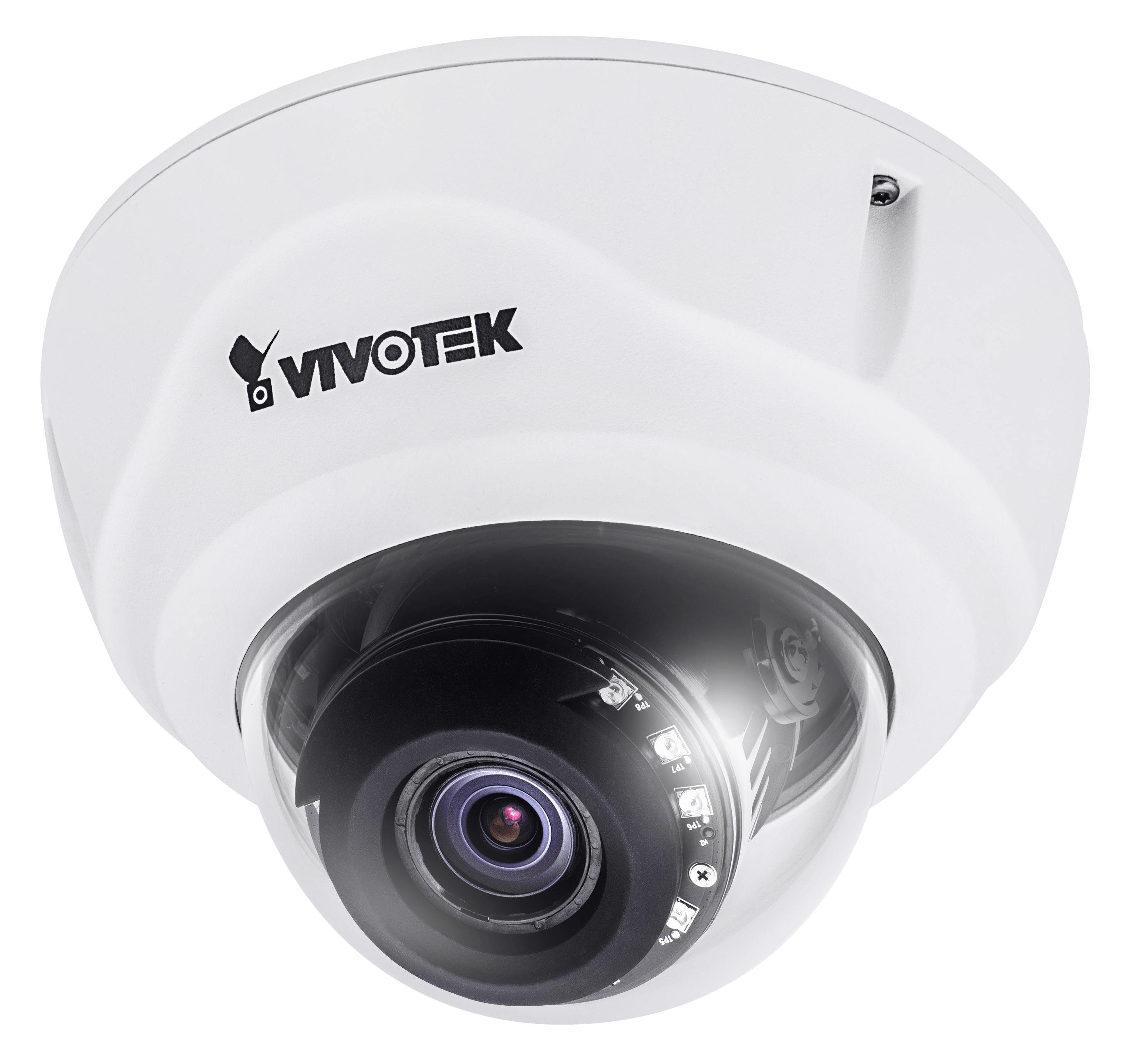

VIVOTEK'in FD9371-EHTV'si, 30 fps sunan yepyeni bir profesyonel H.265 yüksek verimli dış mekan dome ağ kamerasıdır. @ Olağanüstü görüntü kalitesi ile 3-Megapiksel. H.265 teknolojisini kullanmak, kameranın daha yüksek ve önceki H.264 sistemlerinden daha verimli görüntü sıkıştırma oranları. Ayrıca, FD9371-EHTV, VIVOTEK'in Smart Stream III teknolojisi ve H.265 sıkıştırma kodeği, bant genişliğini %90'dan fazla azaltırken* Akıllı akış olmadan geleneksel H.264'e kıyasla mükemmel görüntü kalitesini korur.


Profesyonel gündüz/gece kamerası olarak FD9371-EHTV ayrıca WDR Pro ve SNV ile donatılmıştır ve kullanıcıların her türlü aydınlatma koşulunda üstün görüntü ayrıntılarının keyfini çıkarın. Ek olarak, IP66 dereceli muhafaza, bu gelişmiş kameralar yağmura ve toza dayanacak, böylece çok sayıda ışık altında bile sorunsuz çalışmayı garanti edecek. sert hava koşulları. Kameraların IK10 dereceli muhafazası, vandalizm eylemlerine karşı da koruma sağlayabilir ve diğer etkiler. Son olarak, geniş bir çalışma sıcaklığı aralığı, performansı ve güvenilirliği daha da artırır FD9371-EHTV'nin hem aşırı soğuk hem de sıcak havalarda, PoE kullanırken bile.


*Sahnelere bağlı olarak



AM-51C (v01)AM-525 (v01)AM-713

Teknik Özellikler
System Information
Model
FD9371-EHTV
CPU
Multimedia SoC (System-on-Chip)
Flash
128MB
RAM
512MB
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Max. Resolution
2048x1536 (3MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 3 ~ 9 mm
Aperture
F1.2 ~ F2.3
Iris Type
P-iris
Field of View
41° ~ 86° (Horizontal)
31° ~ 64° (Vertical)
51° ~ 113 (Diagonal)
Shutter Time
1/5 sec. to 1/16000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters, IR LED*8
Minimum Illumination
0.01 lux @ F1.2 (Color)
0.001 lux @ F1.2 (B/W)
0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265/H.264: 30fps@ 2048x1536
MJPEG: 15fps@ 2048x1536
Maximum Streams
3 simultaneous streams
S/N Ratio
60 dB
Dynamic Range
100 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, video rotation, defog, DIS
Audio
Audio Capability
Two-way Audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
External microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
Alarm and Event
Event Trigger
Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy
Event Action
Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator
System power and status indicator
Power Input
DC 12V
IEEE 802.3at PoE Class 4
Power Consumption
Max. 24.7 W (Heater on)
Dimensions
Ø 155 x 103 mm
Weight
928 g
Casing
IP66, IK10
Certifications
CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Humidity
90%
Warranty
36 Months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Shepherd, VAST 32-channel recording software
Packing Contents
Quick installation guide, screw pack, alignment sticker, desiccant bag, water-proof connectors

V-Pro H.265 Line
