FD9187-HT-A

FD9187-HT-A
FD9187-HT-A


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


2560x1920'de 30 fps, 1920x1080'de 60 fps
H.265 Sıkıştırma Teknolojisi
Bant Genişliği Verimliliğini Optimize Etmek için Akıllı Akış III
Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)
Son Derece Parlak ve Karanlık Ortamlarda Eşsiz Görünürlük için WDR Pro
Dahili IR Aydınlatıcılar, 50 Metreye Kadar Etkili
Aşırı Pozlamayı Önlemek için Akıllı IR II Teknolojisi
Yanlış Alarmları Azaltmak için Akıllı Hareket Algılama
Akıllı VCA (İzinsiz Giriş Tespiti, Gezinme Tespiti, Hat Geçişi Tespiti)
Trend Mikro IoT Güvenliği
İnsan Algılaması için Yerleşik PIR Sensörü

Genel Bakış

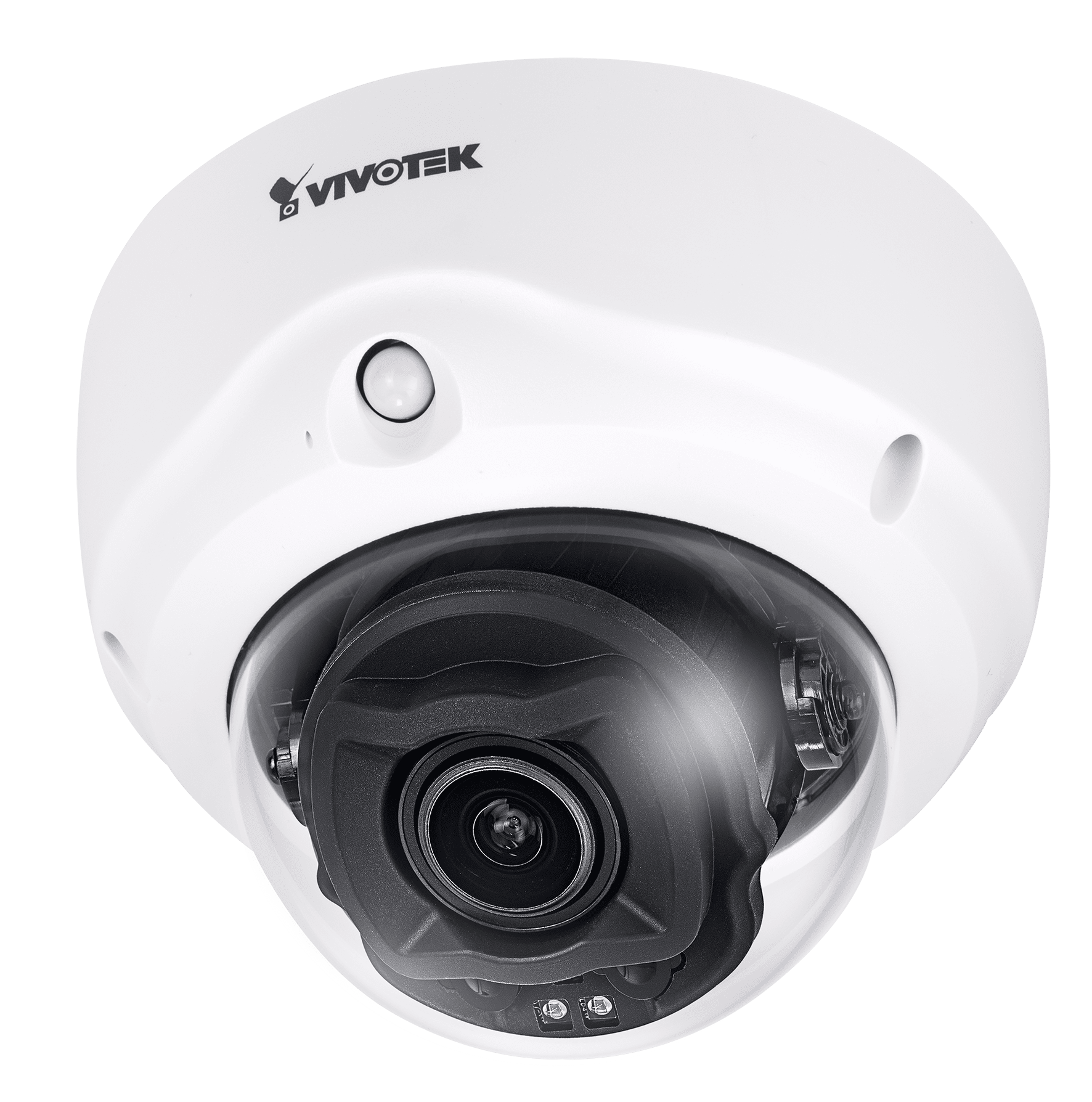

VIVOTEK FD9187-HT-A, 5 megapikselde 30 fps'ye veya full HD sensörde 60 fps'ye kadar sunan iç mekan dome ağ kamerasıdır tüm çözünürlüklerde veya kare hızlarında üstün görüntü kalitesiyle. VIVOTEK SNV ve WDR Pro teknolojisine sahip, FD9187-HT-A, yüksek kontrastlı veya düşük ışıklı ortamlarda yüksek kaliteli görüntü yakalama yeteneğine sahiptir.

FD9187-HT-A, farklı kullanıcı senaryoları için uzak odaklı lens sunar. IR aydınlatıcılar 50 metre ile donatılmıştır daha iyi gece görüşü için etkili menzil. İç mekan uygulamaları için, PIR sensörü ve mikrofon yerleşiktir. beklenmedik olayları tespit edin.

VIVOTEK'in Smart Stream III teknolojisini ve H.265 codec desteğini kullanan FD9187-HT-A, bant genişliğini %90* mükemmel görüntü kalitesini korurken. Ayrıca VIVOTEK VADP (VIVOTEK Uygulama Geliştirme Platformu) kullanıcıların çeşitli uygulama ve kullanıcı senaryoları için özelleştirilmiş uygulama eklemesine olanak tanır.

FD9187-HT-A artık yeni bir gelişmiş Video İçerik Analizi (VCA) dalgası da içeriyor - Akıllı VCA, izinsiz giriş algılama, gezinme algılama, hat geçiş algılama, gözetimsiz nesne algılama, kayıp nesne algılama, yüz algılama. Bu özellikler, güvenlik kameralarını görüntüden yükseltmenin sonraki adımlarıdır. cihazları gelişmiş bildirim araçlarına kaydederek kullanıcıların daha fazlasını daha akıllı yollarla görmelerini sağlar.

* Sahnelere bağlı olarak

H.265 + Smart Stream III, Ultra-low Bandwidth

AM-105AM-21AAM-514AM-527
Teknik Özellikler
System Information
Model
FD9187-HT-A
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
1 GB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.7 ~ 13.5 mm
Aperture
F1.4 ~ F2.8
Iris Type
P-iris
Field of View
100° ~ 30° (Horizontal)
72° ~ 23° (Vertical)
135° ~ 38° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination
0.075 lux @ F1.4 (Color)
<0.01 lux @ F1.4 (B/W)
0 lux with IR illumination on
Pan Range
350°
Tilt Range
80°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, CVBS
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off)
Maximum Streams
3 simultaneous streams
S/N Ratio
57 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
Audio
Audio Capability
Two-way Audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
External microphone input
External line output
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection
Five-window video motion detection, people detection, time filter
Smart VCA
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
*Please access https://license.vivotek.com/ to get the free trial license.
VADP Package
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio input
Audio output
AC 24V power input (Optional)
DC 12V power input
Digital input *2
Digital output *2
TV out
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af Class 0 PoE, DC 12V, AC 24V (Optional)
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE: Max. 12 W
DC 12V: Max. 9 W
AC 24V (Optional): Max. 10.5 W
Dimensions
Ø 139 x 103 mm
Weight
538 g
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471); IA: BIS (IS 13252)
Operating Temperature
Starting Temperature:
0°C ~ 45°C (32°F ~ 113°F)
Working Temperature:
-10°C ~ 45°C (14°F ~ 113°F) (IR off)
-10°C ~ 40°C (14°F ~ 104°F) (IR on)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack
