IP9165-LPR

IP9165-LPR
IP9165-LPR


0,00TL
Vergiler Hariç: 0,00TL

Ana Özellikler


Kentsel/Yol Uygulamaları için Gömülü LPR Yazılımı
70'den Fazla Ülkeden Plakaları Destekler
Plaka Doğrulaması için Kara ve Beyaz Listeler
Tek Kamerada Merkezi Liste Yönetimi
Başka Bir İlgili Genel Bakış Kamerasından Kanıt Görüntüsü Olarak Anlık Görüntü Alma
VAST 2 ile Tamamen Entegre
3. Taraf Entegrasyonu için Çeşitli Açık API'ler Mevcuttur

Genel Bakış


VIVOTEK'in IP9165-LPR kamerası, gelişmiş plaka doğrulaması için beyaz listeleri ve kara listeleri destekleyen 60mph (90kmph) plaka tanıma yazılımına sahiptir. Aynı anda birden fazla ülke veya eyaletin plakalarını okuyabilir (örn. Singapur ve Malezya; Teksas, Oklahoma ve komşu eyaletler). Ayrıca IP9165-LPR, şehir gözetimi, yaşayan topluluklar, otoyol ve ücret yönetimi gibi farklı uygulamaları yerine getirmek için 3. taraf sistemlerle entegrasyon için çeşitli API'ler sunar. Yeni kanıt işleviyle birlikte özellik, RTSP akışı aracılığıyla bağlanan kameranın anlık görüntüsüyle birleştirilebilir ve kanıtın gücünü güçlendirmek için yola genel bakış ve LPR sonuç görüntülerini aynı anda sağlar.

Teknik Özellikler
System Information
Model

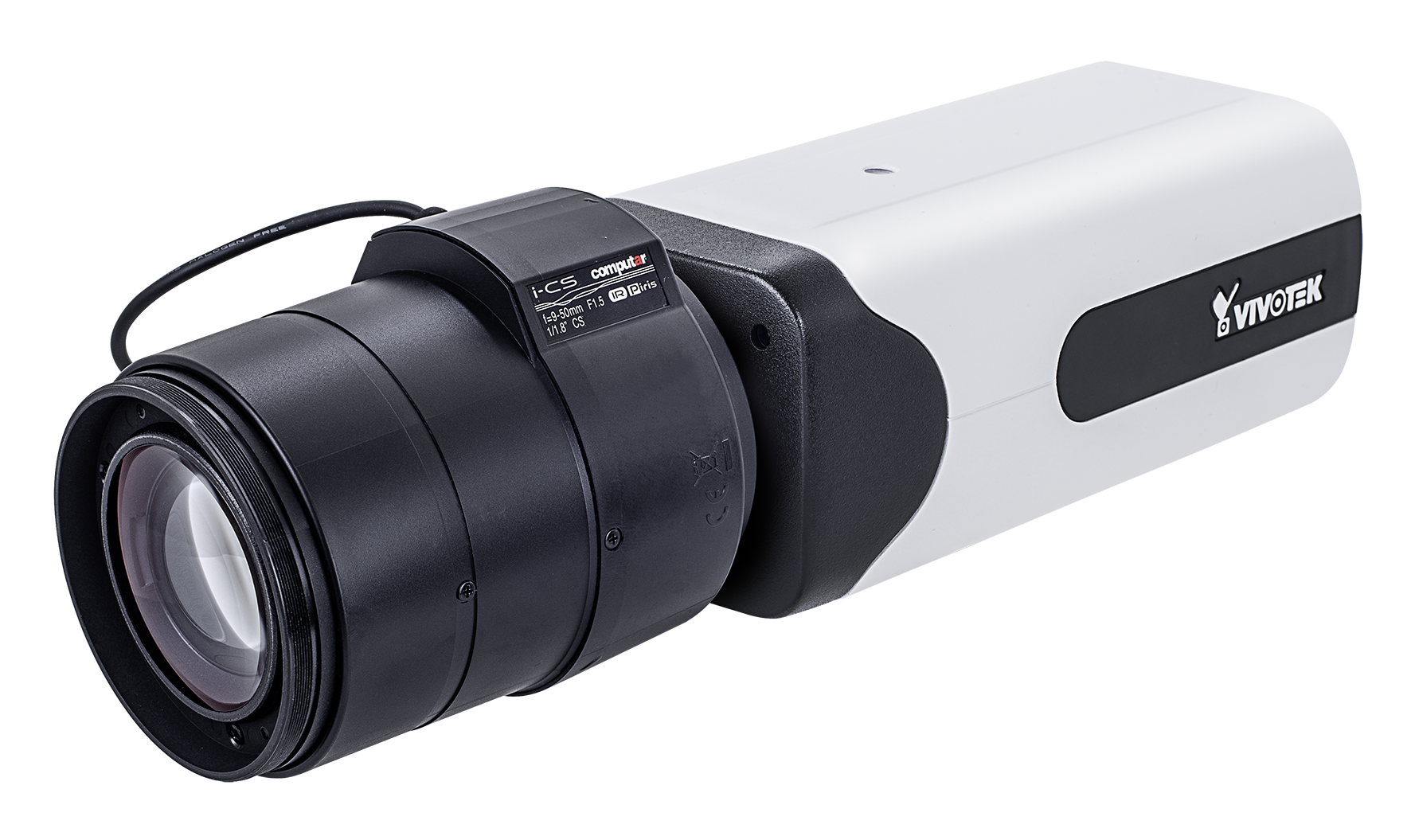

IP9165-LPR (9-50mm)

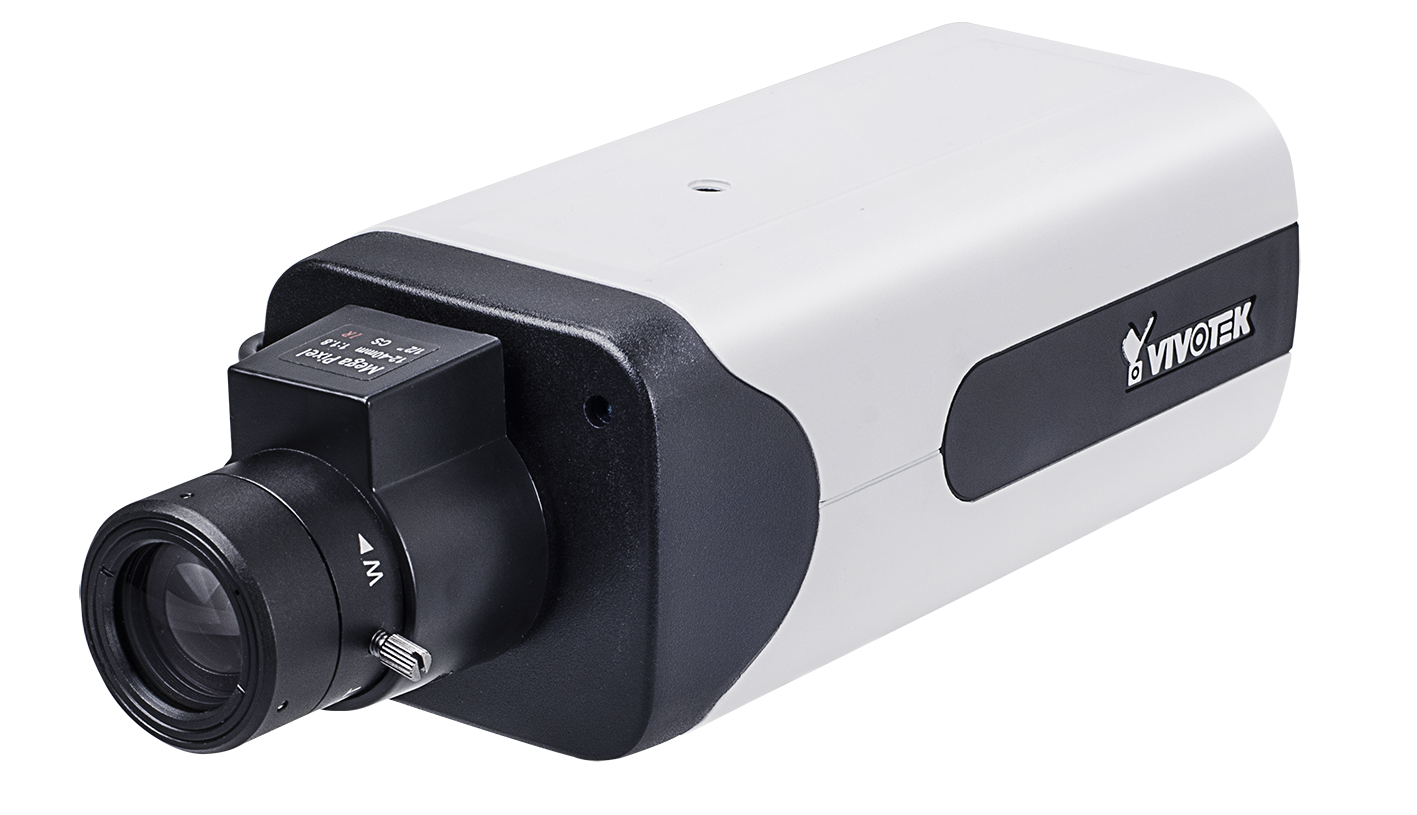

IP9165-LPR (12-40mm)
CPU
Multimedia SoC (System-on-Chip)
Flash
512MB
RAM
1GB
Camera Features
Image Sensor
1/2" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Vari-focal, Remote Focus, i-CS
Focal Length
f = 9 ~ 50 mm [IP9165-LPR (9-50mm)]
f = 12 ~ 40 mm [IP9165-LPR (12-40mm)]
Aperture
F1.5 [IP9165-LPR (9-50mm)]
F1.8 ~ F2.3 [IP9165-LPR (12-40mm)]
Iris Type
i-CS [IP9165-LPR (9-50mm)]
P-iris [IP9165-LPR (12-40mm)]
(DC-iris reserved)
Field of View
IP9165-LPR (9-50mm):
42.8° ~ 8.3° (Horizontal)
24.3° ~ 4.7° (Vertical)
48.9° ~ 9.46° (Diagonal)
IP9165-LPR (12-40mm):
34.2° ~ 11.6° (Horizontal)
18.7° ~ 6.6° (Vertical)
39.8° ~ 13.3° (Diagonal)
Shutter Time
1/60 sec. to 1/16,000 sec.
WDR Technology
WDR Pro II
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
IP9165-LPR (9-50mm):
0.01 lux @ F1.5
IP9165-LPR (12-40mm):
0.08 lux @ F1.8
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Built-in 32GB MicroSD card for LPR images
Slot type: MicroSD/SDHC/SDXC card slot
(Max. SD card capacity:128GB)
Seamless Recording
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
60 fps @ 1920x1080
Maximum Streams
4 simultaneous streams
S/N Ratio
66.2 dB
Dynamic Range
140 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; IR control: illuminators, spectrum mode, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, Lens distortion correction, DIS, scene mode (LPC-parking, LPC-street); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
Audio
Audio Capability
Two-way Audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
External microphone input
External line output
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
Camera:
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Urban ANPR package:
Socket client, Socket server, ONVIF event, FTP/FTPS, HTTP/HTTPS
Interface
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
Embedded Software
VIVOTEK ANPR
VADP Package
Trend Micro IoT Security
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Camera: Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, wiegand protocol supported
General
Connectors
RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection
Audio input
Audio output
DC 12V/AC 24V power input
Digital input*2
Digital output*2
RS485*1
BNC*1
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
DC 12V
AC 24V
(Power Redundancy)
Power Consumption
DC 12V: Max. 9 W
AC 24V: Max. 18 W
PoE: Max. 9.06 W
Dimensions
IP9165-LPR (9-50mm):
263 (D) x 78 (W) x 84 (H) mm
IP9165-LPR (12-40mm):
203 (D) x 70 (W) x 61 (H) mm
Weight
680 g (w/o lens)
790 g (w/ lens)
Certifications
CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
Humidity
90% RH (non-condensing)
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, warranty card, lens, camera stand, screw pack
Kentsel/Yol Uygulamaları için Gömülü LPR Yazılımı


IP9165-LPR, net plaka görüntüleri yakalayabilen bağımsız bir LPR kamera sistemidir. LPR okumaları için 60 MPH'ye (90km/sa) varan hızlarda hareket eden araçlardan. Şehir için ideal bir seçenektir gözetim, konut toplulukları ve otoyol geçiş ücreti yönetimi uygulamaları.




Başka Bir İlgili Genel Bakış Kamerasından Kanıt Görüntüsü Olarak Anlık Görüntü Alma


Plaka tanıma işlevine ek olarak, yeni kanıt işlevi, RTSP akışı aracılığıyla bağlanan kameranın anlık görüntüsü ile birleştirilmiş, yola genel bakış ve LPR sağlar Kanıtın gücünü güçlendirmek için sonuç görüntüleri aynı anda.




Tek Kamera Çift Şeritli

IP9165-LPR'nin yüksek görüntü kalitesi, tek şeritte iki şeridin geniş kapsamını sağlar. Otoban geçiş ücreti yönetimi veya kentsel yol gözetimi için kullanılan kamera. Tek bir IP9165-LPR Kiti ile (Sokak) çift şeridi kaplarsa, trafik izlemenin toplam maliyeti azalacaktır.
