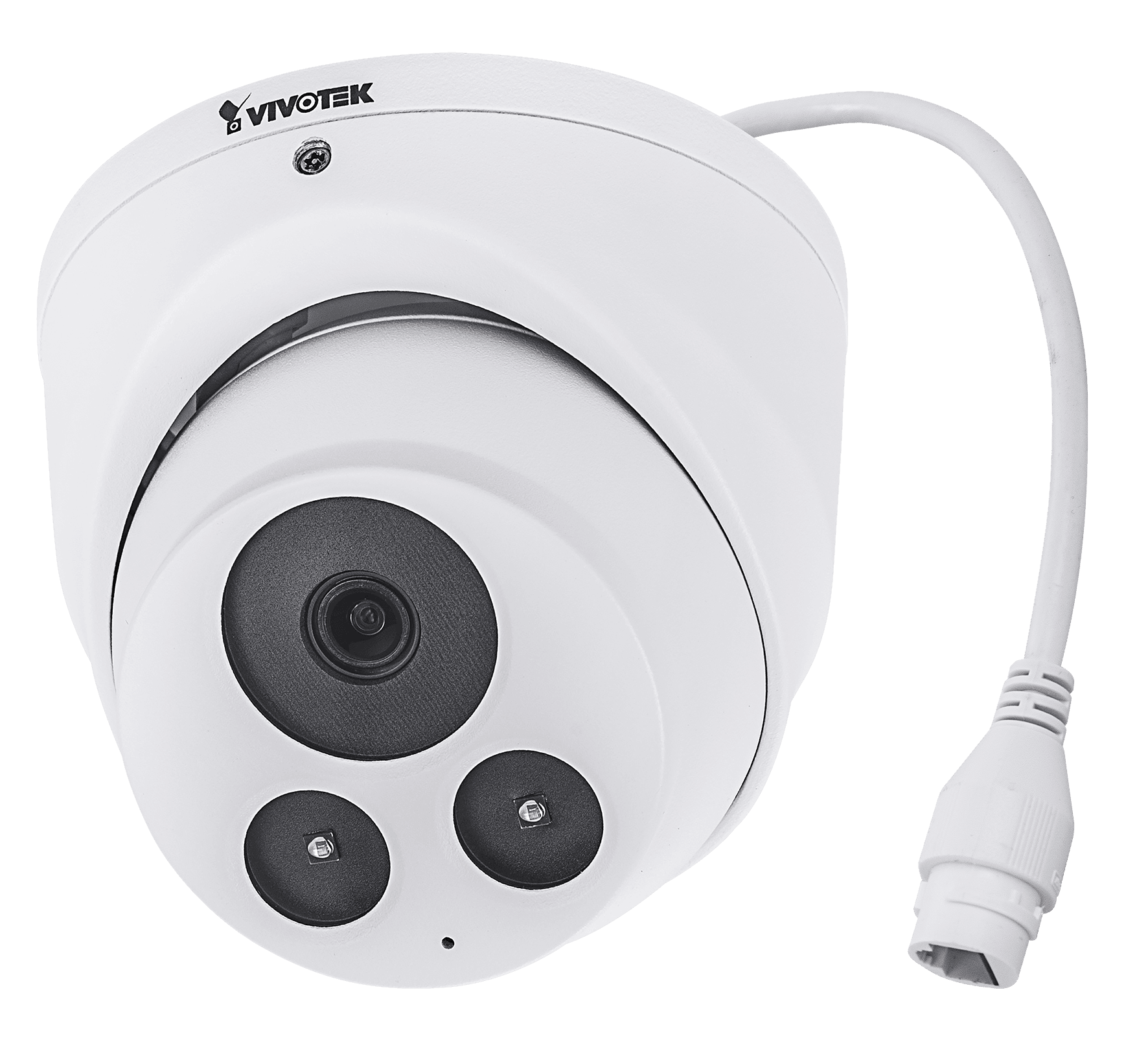

IT9360-H

IT9360-H
IT9360-H
0 yorum yapılmış. - Yorum Yap


0,00TL
Vergiler Hariç: 0,00TL
Buy Now Ask Question

Temel Özellikler


H.265 Sıkıştırma Teknolojisi

30fps @ 1920x1080 (WDR Pro açık)

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream III

Son Derece Parlak ve Karanlık Ortamlarda Eşsiz Görünürlük için WDR Pro

Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)

Dahili IR Aydınlatıcılar, 30 Metreye Kadar Etkili

Hava koşullarına dayanıklı IP66 dereceli ve Vandalizme dayanıklı IK10 dereceli Muhafaza

Yerleşik Depolama için Dahili MicroSD/SDHC/SDXC Kart Yuvası

Trend Mikro IoT Güvenliği

Dahili Mikrofon



AM-21MAM-52EAM-71C

Teknik Özellikler
System Information
Model
IT9360-H (2.8mm)
IT9360-H (3.6mm)
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
256 MB
Camera Features
Image Sensor
1/2.9" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
IT9360-H(2.8mm): f = 2.8 mm
IT9360-H(3.6mm): f = 3.6 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
IT9360-H(2.8mm):
109° (Horizontal)
59° (Vertical)
129° (Diagonal)
IT9360-H(3.6mm):
81° (Horizontal)
44° (Vertical)
95° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.065 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Pan Range
360°
Tilt Range
70°
Rotation Range
360°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
IT9360-H(2.8mm): 68 dB
IT9360-H(3.6mm): 68 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection*1
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6 W/3.31 W (IR on/off)
Dimensions
Ø 105 x 82.5 mm
Weight
475 g
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland


Document Type Model Name Type Category Title Version Issued Date File Size

Datasheet
IT9360-H




219.9 KB

QIG

IT9360-H



6.9 MB

Manual

IT9360-H



41.7 MB

Firmware

IT9360-H
0223b
2020-07-19
33 MB

Firmware

IT9360-H
2.2002.13.01j
2021-01-04
29.3 MB

Others

IT9360-H

Drawing


294.9 KB

Others

IT9360-H

Alignment Sticker



38.2 KB


IT9360-H



561.1 KB

Certificate

IT9360-H
CE  Certificate

2019-07-21
148 KB

Certificate

IT9360-H
FCC

2019-07-21
1009.6 KB

Certificate

IT9360-H
VCCI Certificate

2019-07-21
25.4 KB

Certificate

IT9360-H
IEC-62471 Certificate

146.1 KB

Certificate

IT9360-H
NoA

106.1 KB

Certificate

IT9360-H
CB(62368) Certificate

147.3 KB

Certificate

IT9360-H
CB(60950) Certificate

158 KB
