FD9360-H

FD9360-H
FD9360-H


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


H.265 Sıkıştırma Teknolojisi

30 fps @ 1920x1080 (WDR Pro açık)

Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)

Son Derece Parlak ve Karanlık Ortamlarda Eşsiz Görünürlük için WDR Pro

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream III

Dahili IR Aydınlatıcılar, 30 Metreye Kadar Etkili

Trend Mikro IoT Güvenliği

Hava koşullarına dayanıklı IP66 dereceli ve Vandalizme dayanıklı IK10 dereceli Muhafaza

Yerleşik Depolama için Dahili MicroSD/SDHC/SDXC Kart Yuvası


Genel Bakış

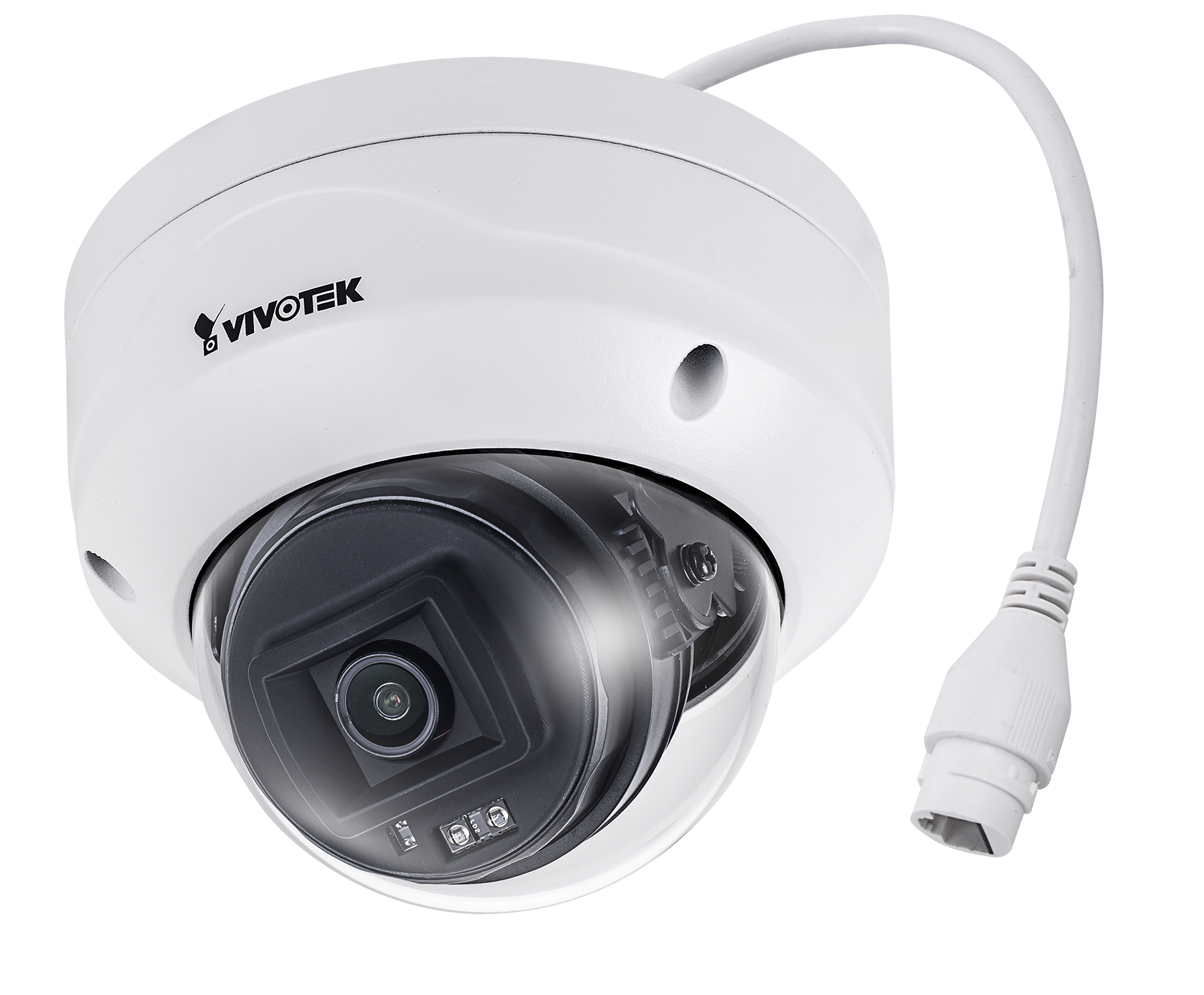

VIVOTEK'in FD9360-H'si, 2 Megapiksel sensörle donatılmış bir H.265 dış mekan dome ağ kamerasıdır. 30 fps'de 1920x1080. VIVOTEK SNV ve WDR Pro teknolojisine sahip FD9360-H, yüksek kaliteli hem yüksek kontrastlı hem de düşük ışıklı ortamlarda görüntüler.


FD9360-H, 2,8 mm/3,6 mm lens kullanır ve 30 metrelik etkili menzile sahip IR aydınlatıcılarla donatılmıştır. daha iyi gece görüşü. Ayrıca, zorlu dış ortamlarda güvenilir kapsama alanı sağlamak için FD9360-H, IP66 ve IK10 muhafaza ile kaplanmıştır.


VIVOTEK'in Smart Stream III teknolojisini ve H.265 codec desteğini kullanan FD9360-H, bant genişliğini azaltabilir üstün görüntü kalitesini korurken %90'a kadar* kullanım. Ayrıca, VADP (VIVOTEK Uygulama Geliştirme Platform), kullanıcıların, giderek artan sayıda kullanıcı senaryosu için uygulamaları çeşitlendiren bir şekilde özelleştirmesine olanak tanır. gözetim pazarı.


* Sahnelere bağlı olarak


H.265 + Smart Stream III, Ultra-low Bandwidth




Document Type Model Name Type Category Title Version Issued Date File Size

Datasheet

FD9360-H





184.9 KB

QIG

FD9360-H




6.2 MB

Manual

FD9360-H




19.4 MB

Firmware

FD9360-H

0223b
2020-07-19
33 MB

Firmware

FD9360-H

2.2002.13.01j
2021-01-04
29.3 MB

Others

FD9360-H

Alignment Sticker


38.8 KB

Others

FD9360-H

Drawing



680.2 KB

Others

FD9360-H

Accessory Datasheet



2.3 MB

Others

FD9360-H

Declaration of Conformity



158.4 KB


FD9360-H



2 MB

Certificate

FD9360-H
CE Certificate


2019-02-24
110.4 KB

Certificate

FD9360-H
FCC  Certificate


2019-02-24
101.4 KB

Certificate

FD9360-H
VCCI


2019-02-24
1 MB

Certificate

FD9360-H
IEC-62471


863.8 KB

Certificate

FD9360-H
NoA


2.8 MB

Certificate

FD9360-H
CB(62368) Certificate


180.3 KB

Certificate

FD9360-H
CB(60950) Certificate


153.6 KB

Certificate

FD9360-H
IP66


295 KB

Certificate

FD9360-H
IK10


661.7 KB
Teknik Özellikler
System Information
Model
FD9360-H (2.8mm)
FD9360-H (3.6mm)
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
256 MB
Camera Features
Image Sensor
1/2.9" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
FD9360-H(2.8mm): f = 2.8 mm
FD9360-H(3.6mm): f = 3.6 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
FD9360-H(2.8mm):
109° (Horizontal)
59° (Vertical)
129° (Diagonal)
FD9360-H(3.6mm):
81° (Horizontal)
44° (Vertical)
95° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.065 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Pan Range
350°
Tilt Range
75°
Rotation Range
350°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
FD9360-H(2.8mm): 68 dB
FD9360-H(3.6mm): 68 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger
Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 6.49 W/3.69 W (IR on/off)
Dimensions
Ø 117.2 x 89.6 mm
Weight
540 g
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
