FD9165-HT-A

FD9165-HT-A
FD9165-HT-A


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


1920x1080'de 60 fps

H.265 Sıkıştırma Teknolojisi

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream III

Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)

WDR Pro, Aşırı Parlak veya Karanlık Ortamlarda Olağanüstü Görünürlük Sağlıyor

50 metreye kadar etkili dahili IR aydınlatıcılar

Aşırı Pozlamayı Önlemek için Akıllı IR II Teknolojisi

Yanlış Alarmları Azaltmak için Akıllı Hareket Algılama

Akıllı VCA (İzinsiz Giriş Tespiti, Gezinme Tespiti, Hat Geçişi Tespiti)

Trend Mikro IoT Güvenliği

İnsan Algılaması için Yerleşik PIR Sensörü


Genel Bakış

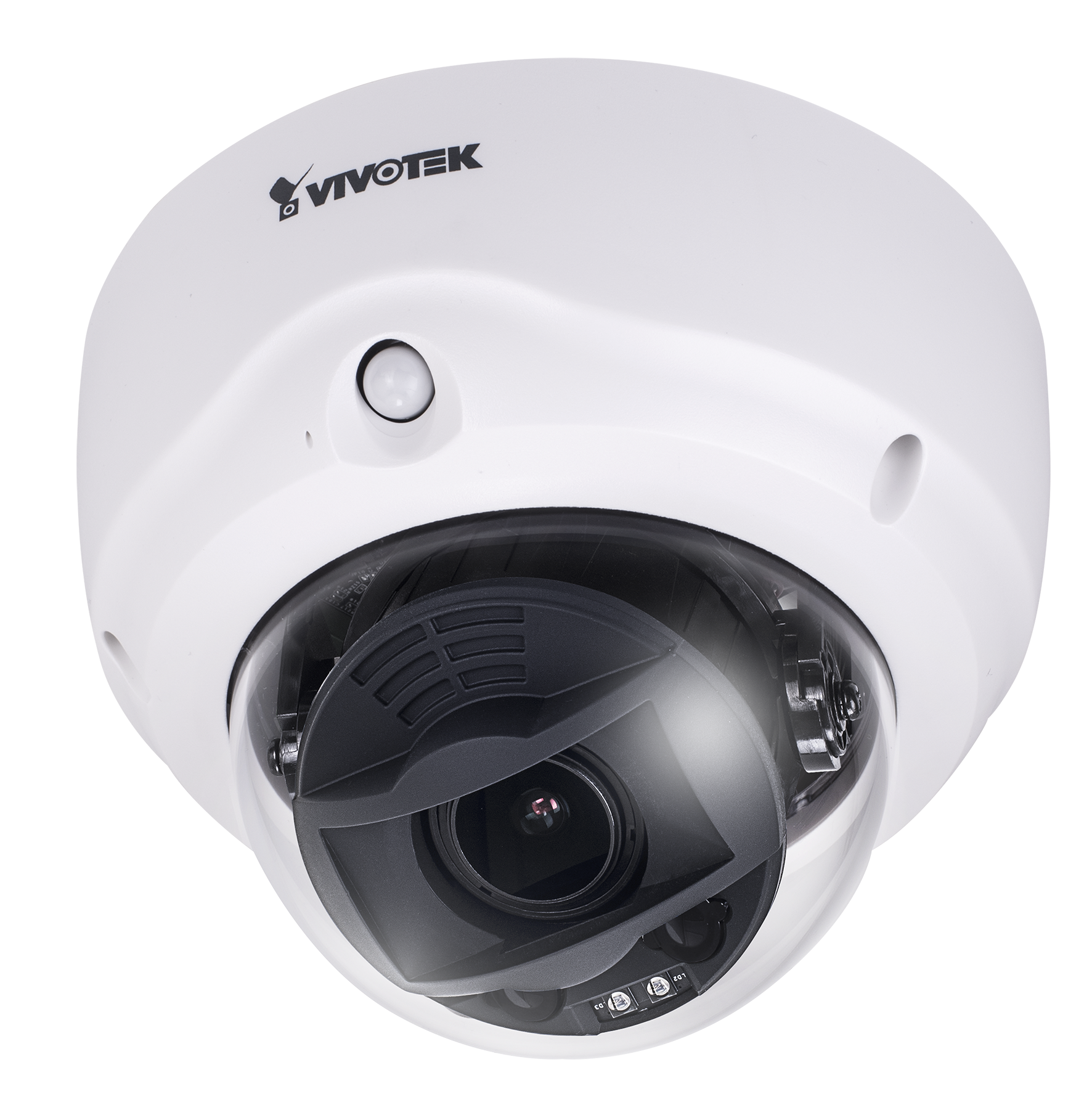

FD9165-HT-A, VIVOTEK'in full HD sensör özellikli yeni amiral gemisi iç mekan dome ağ kamerasıdır. 60 fps'de 1920 x 1080 çözünürlük. En güncel VIVOTEK SNV ve WDR Pro teknolojisine sahip FD9165-HT-A, hem düşük ışıkta hem de yüksek kontrastlı ortamlarda en yüksek kalitede görüntüler yakalayabilir.


FD9165-HT-A ayrıca gece gözetim teknolojisinde en iyisini sunar. Değişken açılı IR teknolojisini benimseyerek VIVOTEK speed dome'lar, FD9165-HT-A IR aydınlatıcılar artık uzak odak lensinin odak açısı ile hizalanarak herhangi bir lens ayarında en iyi IR görüntü kalitesi. Bu özellik IR yoğunluğunu optimize eder, IR etkin noktalarını azaltır ve IR etkili menzilini 50 metreye kadar artırır. İç mekan uygulamaları için FD9165-HT-A ayrıca bir PIR içerir beklenmedik olayların daha fazla algılanmasını sağlayan yerleşik bir mikrofonun yanı sıra sensör.


Ayrıca, bu seriler VIVOTEK'in Smart Stream III teknolojisini ve H.265 sıkıştırma kodeğini kullanarak mükemmel görüntü kalitesini korurken %90'a kadar bant genişliği. Ayrıca, VIVOTEK VADP (VIVOTEK Uygulama Geliştirme Platformu), kullanıcıların çeşitli uygulamalar ve kullanıcılar için özelleştirilmiş programlar eklemesine olanak tanır. senaryolar.


FD9165-HT-A artık yeni bir gelişmiş Video İçerik Analizi (VCA) dalgası da içeriyor - Akıllı VCA: izinsiz giriş algılama, gezinme algılama, hat geçiş algılama, gözetimsiz nesne algılama, kayıp nesne algılama, yüz algılama. Bu özellikler, güvenlik kameralarını görüntü yakalamadan yükseltmenin sonraki adımlarıdır. cihazlardan gelişmiş bildirim araçlarına kadar, kullanıcıların daha fazlasını daha akıllı yollarla görmelerini sağlar.


* Sahnelere bağlı olarak





Smart Stream III Technology: High-Quality Image, Ultra-Low Bandwidth

VIVOTEK Cybersecurity: Security within Security

Cybersecurity Management Solution

Teknik Özellikler
System Information
Model
FD9165-HT-A
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
1 GB
Camera Features
Image Sensor
1/2" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 4 ~ 9 mm
(f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8")
Aperture
F1.3 ~ F2.2
Iris Type
P-iris
Field of View
120° ~ 46° (Horizontal)
60° ~ 26° (Vertical)
152° ~ 53° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
Minimum Illumination
0.015 lux @ F1.3 (Color)
<0.005 lux @ F1.3 (B/W)
0 lux with IR illumination on
Pan Range
350°
Tilt Range
60°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, CVBS
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
60 fps @ 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
68 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
Audio
Audio Capability
Two-way Audio (full duplex)
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
External microphone input
External line output
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection
Five-window video motion detection, people detection, time filter
Smart VCA
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
VADP Package
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio line input
Audio line output
AC 24V power input
DC 12V power input
Digital input *2
Digital output *2
TV out
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af Class 0 PoE, DC 12V, AC 24V
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE: Max. 11 W
DC 12V: Max. 8 W
AC 24V: Max. 9.5 W
Dimensions
Ø 139 x 103 mm
Weight
538 g
Certifications
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471); IA: BIS (IS 13252)
Operating Temperature
Starting Temperature:
0°C ~ 45°C (32°F ~ 113°F)
Working Temperature:
-10°C ~ 45°C (14°F ~ 113°F) (IR off)
-10°C ~ 40°C (14°F ~ 104°F) (IR on)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack
