FD816CA-HF2

FD816CA-HF2
FD816CA-HF2


0,00TL
Vergiler Hariç: 0,00TL

Temel Özellikler


30 fps @ 1920x1080

Gerçek Zamanlı H.264, MJPEG Sıkıştırma (Çift Codec)

Yüksek Işık Kontrastlı Sahnelerde Olağanüstü Görünürlük Sağlamak için WDR Pro (100dB)

Düşük Işık Koşulları için SNV (Üstün Gece Görüşü)

Bant Genişliği Verimliliğini Optimize Etmek için Smart Stream II

Düşük Işık Koşullarında 3D Gürültü Azaltma

70° Eğimli Lens

Dahili IEEE 802.3af Uyumlu Yetki Belgesi

Trend Mikro IoT Güvenliği

VIVOCloud Uygulaması & 7/24 Gözetim Portalı (VIVOCloud VADP paketini manuel olarak yükleyin)


Genel Bakış

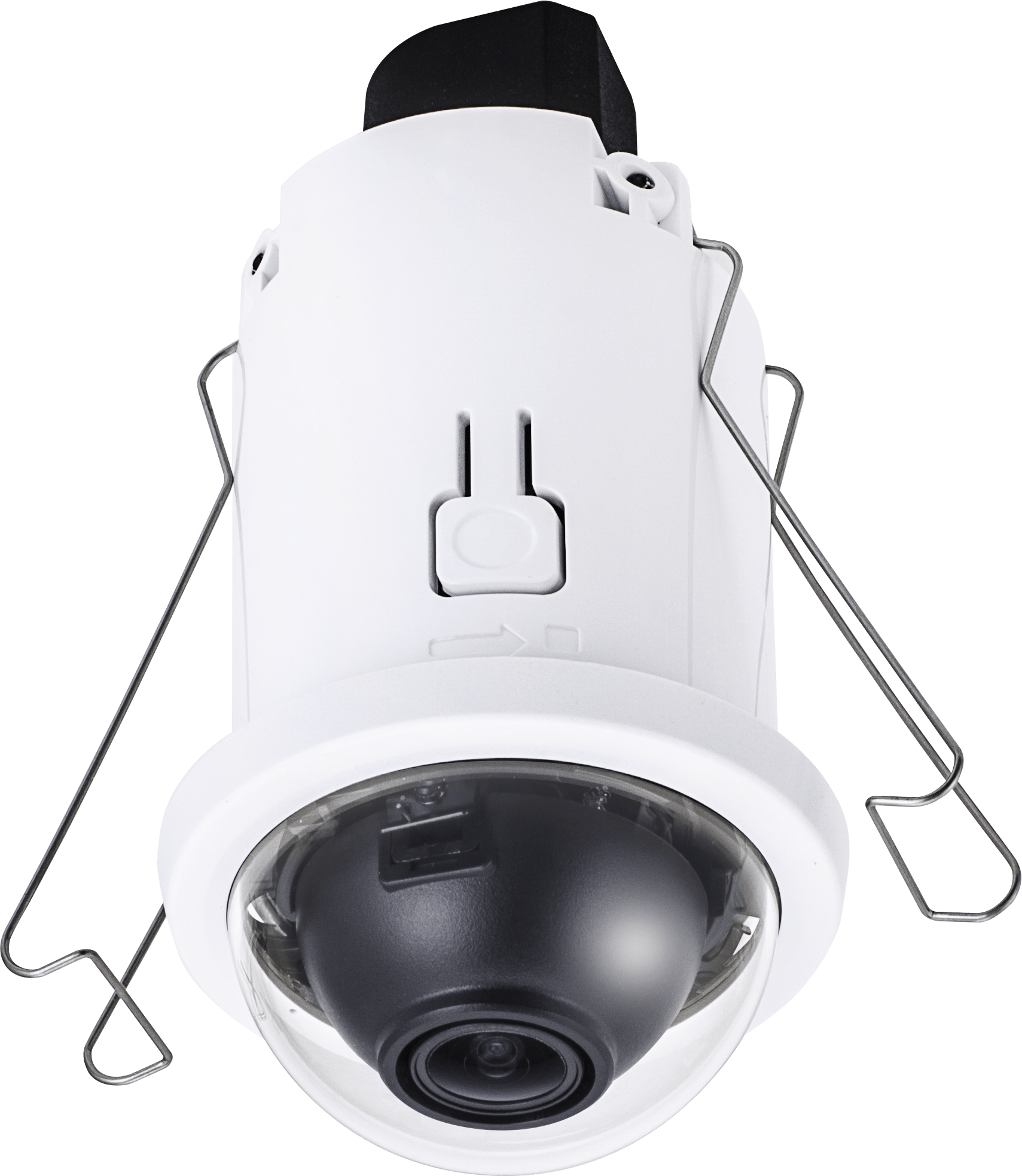

VIVOTEK'in FD816CA-HF2'si, ultra mini, gömme montajlı sabit dome ağ kamerasıdır ve maksimum 8 kata kadar üstün görüntü kalitesi sunar. 2 Megapiksel çözünürlükte 30 fps. Kompakt tasarımı (sadece 60 mm çapında) sayesinde kamera, perakende, bankalar, restoranlar, ofisler ve diğer halka açık alanlar gibi herhangi bir kapalı gözetim alanına.


VIVOTEK'in WDR Pro ve SNV teknolojisine sahip FD816CA-HF2, yüksek kontrastta üstün görünürlük sağlar aydınlatma ortamları ve düşük ışık koşullarında bile yüksek kaliteli tam renkli gözetim videosu. İle donatılmış VIVOTEK'in gelişmiş Smart Stream II teknolojisi, kamera görüntü kalitesini istenen bölgeler için optimize eder ve böylece bant genişliği kullanımında maksimum verimlilik ve bant genişliği ile depolama gereksinimlerinde %50'ye varan tasarruf sağlar.


Hepsi bir arada kamera olarak FD816CA-HF2, PoE gücüyle kolay kurulum için tasarlanmıştır ve kurulumun hem hızlı olmasını sağlar ve basit. Kamera ayrıca VIVOTEK'in VAST ücretsiz 32 kanallı kayıt yazılımıyla da tamamen uyumludur. İle tüm bu avantajlar ve daha fazlası ile FD816CA-HF2, gözetim ihtiyaçlarınızı karşılayacaktır.



Ultra Mini Gömme Montaj Sabit Dome Ağ Kamerası





Document Type Model Name Type Category Title Version Issued Date File Size

Datasheet

FD816CA-HF2





125.6 KB

QIG

FD816CA-HF2




2.6 MB

Manual

FD816CA-HF2




14.4 MB

Firmware

FD816CA-HF2

0113b
2019-07-23
34.2 MB

Firmware

FD816CA-HF2

Beta
0122a_Beta2
2020-05-20
25.1 MB

Others

FD816CA-HF2

Declaration of Conformity


159 KB

Others

FD816CA-HF2

Accessory Datasheet



789.7 KB


FD816CA-HF2



978.9 KB

Certificate

FD816CA-HF2
CE


2017-01-23
3.5 MB

Certificate

FD816CA-HF2
Certificate


2017-01-23
449.6 KB

Certificate

FD816CA-HF2
FCC


2016-11-24
952.4 KB

Certificate

FD816CA-HF2
Certificate


2016-11-24
450.7 KB

Certificate

FD816CA-HF2
VCCI


2016-11-24
1.1 MB

Certificate

FD816CA-HF2
UL


2.6 MB

Certificate

FD816CA-HF2
NoA


66.2 KB

Certificate

FD816CA-HF2
LVD


2017-03-10
1.8 MB

Certificate

FD816CA-HF2
Certificate


2017-03-10
376.3 KB
Teknik Özellikler
System Information
Model
FD816CA-HF2
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
256 MB
Camera Features
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F1.8
Iris Type
Fixed iris
Field of View
122° (Horizontal)
66° (Vertical)
142° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Minimum Illumination
0.15 lux @ F1.8 (Color)
< 0.01 lux @ F1.8 (B/W)
Pan/Tilt/Zoom Functionalities
ePTZ: 4x digital zoom (4x on IE plug-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card
Video
Video Compression
H.264, MJPEG
Maximum Frame Rate
30 fps@ 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
66 dB
Dynamic Range
100 dB
Video Streaming
Adjustable resolution, quality and bit rate control, Smart Stream II
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security, user access log, user account management
Protocols
802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial)
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 3.3 W
Dimensions
Ø 60 x 115 mm
Weight
138 g
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), VCCI (V-3/2015.04 Class B, V-4/2012.04); Safety: UL (UL60950-1), LVD (IEC/EN 60950-1)
Operating Temperature
Starting Temperature: 0°C ~ 45°C (32°F~ 113°F)
Working Temperature: -10°C ~ 45°C (14°F~ 113°F)
Humidity
90%
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide

                                          FD816C(A)-HF2 Installation

AC-229AM-526
